Floor Standing Models
Floor standing models allow increased size and versatility. Hood enclosures, crane & spark resistant hoists allow safe and ergonomic operation.
FLOOR STANDING MODELS
Highest Quality Parts and Manufacturing Processes
All Stainless Steel Construction. Powerful, effective, safe. This line of cleaners provides multiple integrated ultrasonic transducers combined for safe cleaning of large parts and equipment with flammable liquids. The unit shown has 4000W power in an all stainless steel 104 x 20” tank and an all stainless steel support and lid system. Typically 240V operation.
Featured Sizes
-
39-Gallon

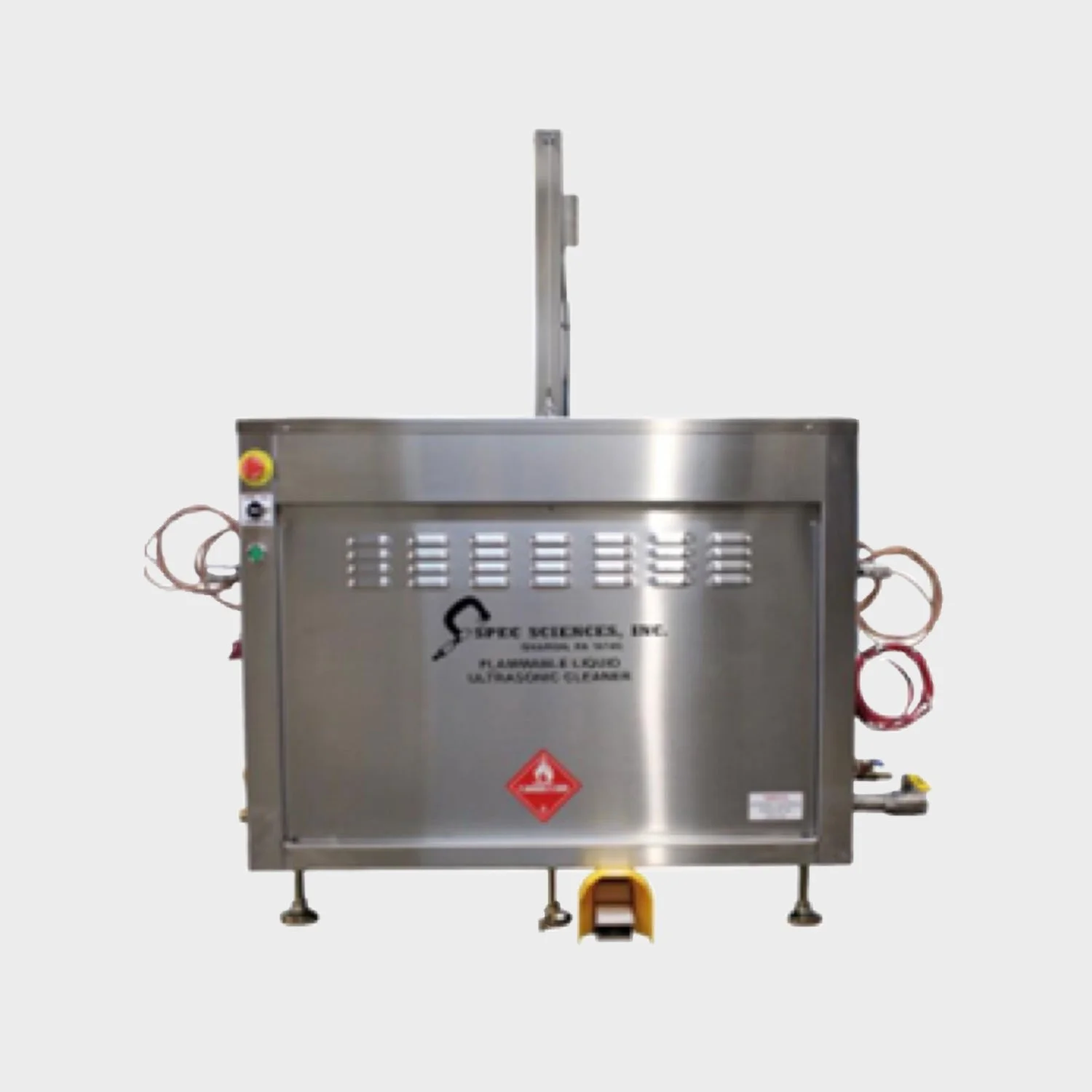

39-Gallon Floor Model with Self Closing Hinged Pneumatic Lid
-
102-Gallon

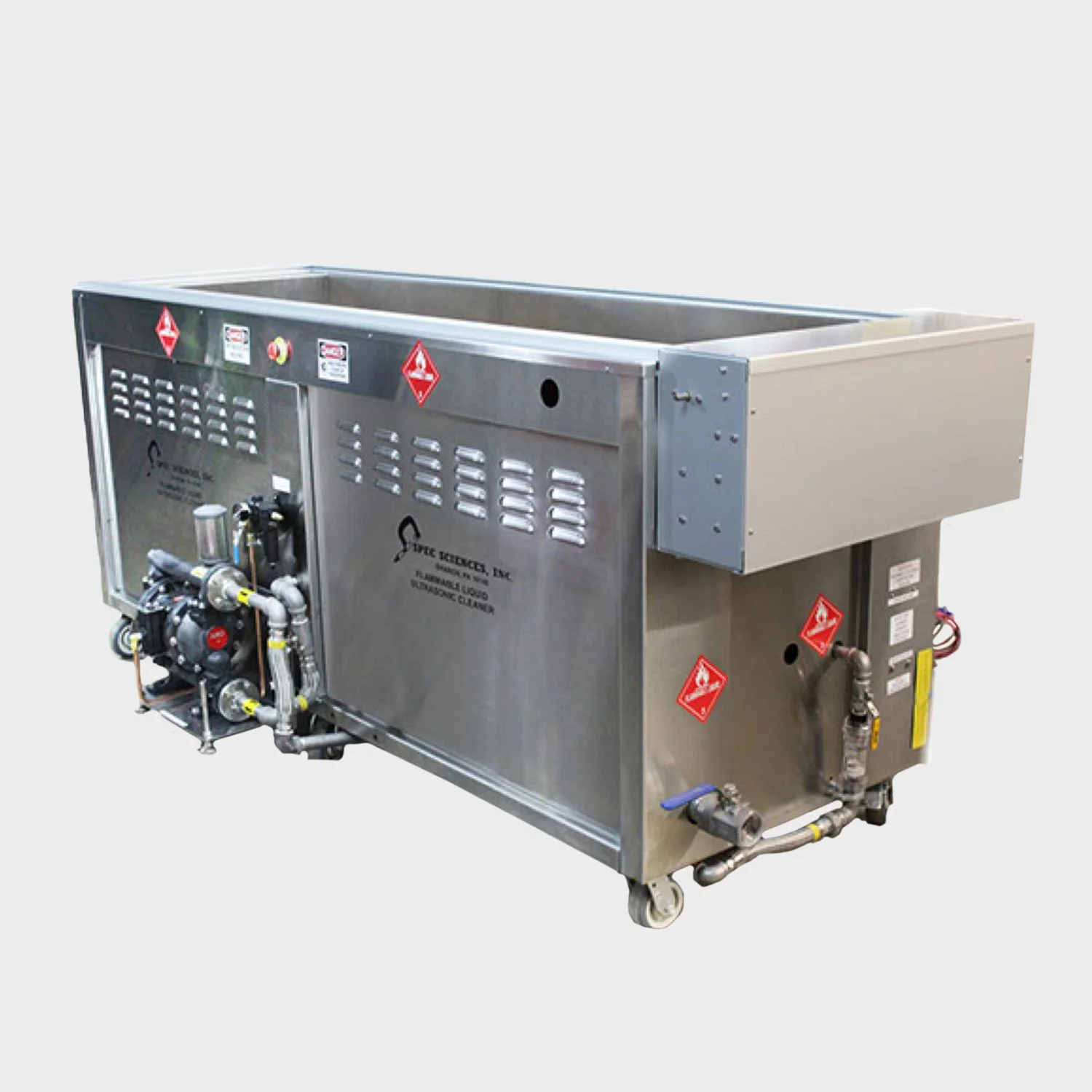

102-Gallon Floor Model with Self Closing Hinged Pneumatic Lid Running on MEK
-
203-Gallon

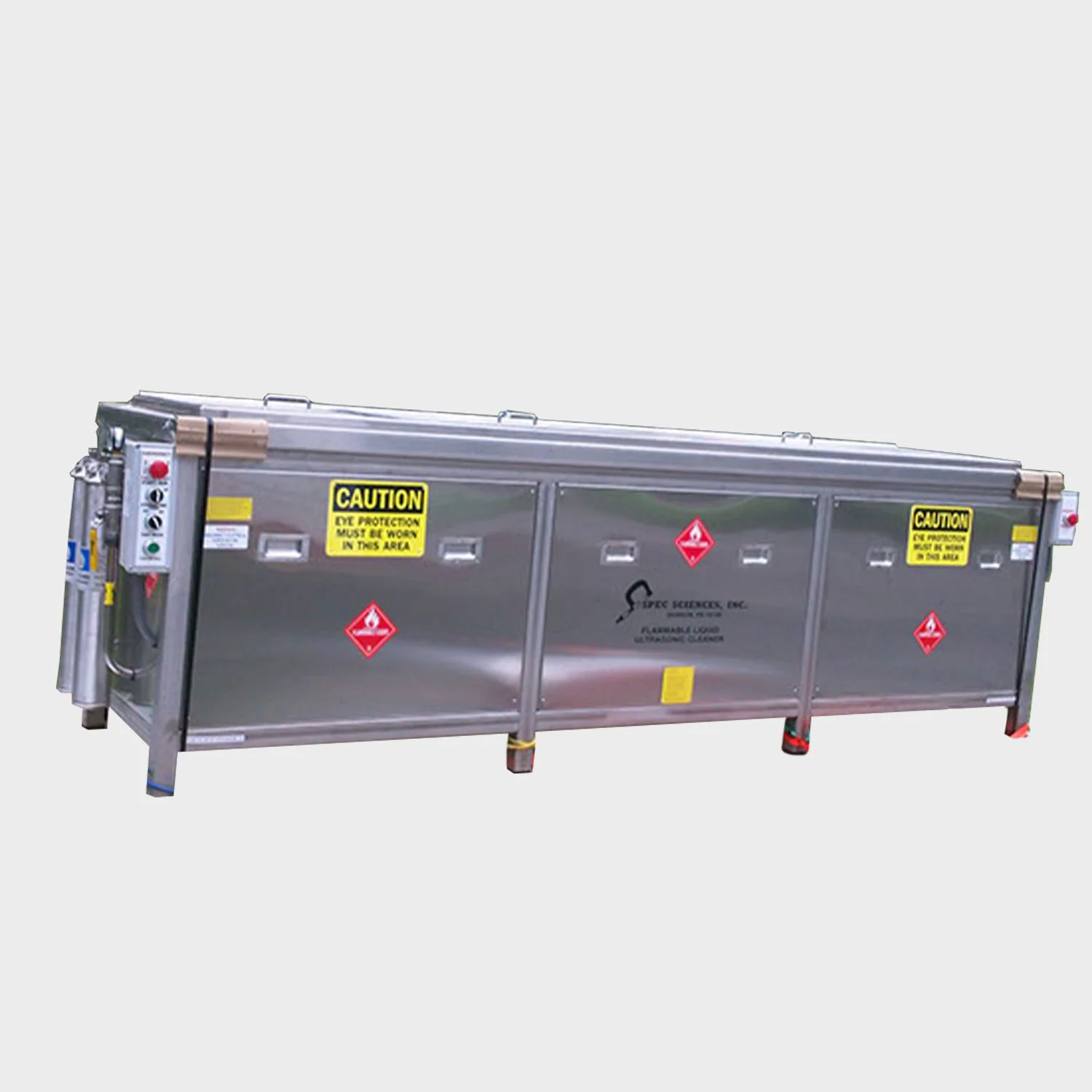

203-Gallon Floor Model for Roll-to-Roll Film Processing Facility.
All Available Sizes
| Model | Tank Vol Gal | Internal Tank Dimensions AxBxC" | Overall Dimensions DxExF" UPCORP | Overall Dim w Purification Sys GxExF | Ultra Sonic Power (Watts | SSI Direct Sales Price | Lead Time Wks |
|---|---|---|---|---|---|---|---|
| 242436EXP | 90 | 24W x 24W x 36D | 30W x 40L x 45D | 32W x 48L x 45D | 3000W | $60,500 | 12-14 |
| 24x24x24 | 60 | 24W x 24W x 24D | 30W x 40L x 33D | 32W x 48L x 33D | 1000W | $53,500 | 12-14 |
| 24x24x12 | 30 | 24W x 24W x 12D | 30W x 40L x 21D | 32W x 48L x 21D | 1000W | $50,500 | 10-12 |
| 243624EXP | 90 | 24W x 36L x 24D | 30W x 50L x 31D | 37W x 55L x 37D | 2000W | $63,800 | 12-14 |
| UP3218EXP | 39 | 18W x 32L x 16D | 24W x 46L x 23H | 31W x 51L x 23H | 1500W | $55,000 | 12-14 |
| UP4822EXP | 90 | 22W x 48L x 20D | 28W x 62L x 27H | 35W x 67L x 27H | 2000W | $55,000 | 12-14 |
| UP4824EXP | 120 | 24W x 48L x 24D | 30W x 62L x 30H | 35W x 67L x 27H | 2000W | $71,500 | 12-16 |
| UP5424EXP | 135 | 24W x 54L x 24D | 30W x 67L x 42H | 30W x 67L x 42H | 3000W | $68,200 | 12-14 |
| UP7028EXP | 204 | 28W x 70L x 24D | 33W x 83L x 42H | 33W x 83L x 42H | 4000W | $84,700 | 12-14 |
| UP8628EXP | 230 | 28W x 86L x 27D | 35W x 98L x 38H | +6Purge + 20Pump | 6000W | $116,050 | 12-14 |
